Posted: July 04 2004,8:19 pm |
Post # 5 |
   |
Kevin, you have a binding problem somewhere, pushrods don't bend(or break) like that from load...You need to measure things up!.  And you do that before you hit Hooters so you can read the fkn numbers!.
|
| Back to top |
 |
| Member # 101 | Joined: 3-03-2003 | |
|
|
GoFastRacer
HDF Supporter
V-Driver For Life!
Big River, Ca
Posts: 62,625
APPD 7.96
Post Rank: 1
Spectra20
|
 |
Posted: July 05 2004,7:40 pm |
Post # 9 |
|
| Quote (AZKC @ July 05 2004,9:21 am) | I'm gona yank the head today and take a looksy inside #7 cylinder I think I'll find some valve damage
Pretty doubtful on the timing chain dealio there Roberto it only has about 10-15 hours on it. I am going to re-ck the cam dial in and verify TDC is TDC
The bent push rods I think were after the fact. The broken tip on the #3 hole now that one has me a little worried
Stay tuned  |
Well I guess it's my fault for not keeping track here, but I thought the last set of heads you got, you had Larry go over them and put a "GOOD" set of valves in!.. Now you did check for piston to valve clearance right???, and you did check for coil bind right???, and you did check for retainer to guide clearance right???...Don't get me wrong, I'm not trying to be a smartass here, just making sure all the bases were covered. Pushrods don't bend or break unless something is binding!..
|
| Back to top |
| |
| Member # 101 | Joined: 3-03-2003 | |
|
|
GoFastRacer
HDF Supporter
V-Driver For Life!
Big River, Ca
Posts: 62,625
APPD 7.96
Post Rank: 1
Spectra20
|
 |
Posted: July 05 2004,9:37 pm |
Post # 11 |
|
That's what I'm trying to figure out!.
|
| Back to top |
| |
| Member # 101 | Joined: 3-03-2003 | |
|
|
GoFastRacer
HDF Supporter
V-Driver For Life!
Big River, Ca
Posts: 62,625
APPD 7.96
Post Rank: 1
Spectra20
|
|
Posted: July 06 2004,7:39 pm |
Post # 16 |
|
| Quote (AZKC @ July 06 2004,8:08 am) | The machine shop cked them over and said they were in good shape. I used the valves that came with the heads. Didn't ck piston to valve clearance and did not check for retainer interference. Are the 781 heads that different from the 049's.
This is the same valve train and pistons that I ran last summer when I took out the crankshaft I had about 10-15 hours on it. Thats why I'm questioning all the clearance re-cks, I guess the guy could have shaved the heads 20 or 30 and that would create some issues. Â I'll do some cks while I have the head off to verify things are not banging into stuff. |
From the factory all those heads were the same. But now just about anything you find has been rebuilt at at one time or another, some more than once and who knows by who!. Depending on what kind of shop did them, who knows how they installed the guides. I've seen some that came from "Fleet Rebuilders" without the guides cut down and the retainers would just about touch with the factory cam..And then who knows what valves were used, those $3.95 valves are marginal for daily driver use, but yet they still can be in good shape when you look at them!..Any more if I buy used stock heads, as far as I'm concerened I'm buying castings, the rest gets shit canned and I start off new. That way I know what I have. When I take heads in all I get done is what I can't do at home (valve job, sufaced, guides put in), If I had the machines I would do it all..I cut the guides down for the seals I use and stack everything up myself and measure everything up for clearance that way there's no dought!..
|
| Back to top |
| |
| Member # 101 | Joined: 3-03-2003 | |
|
|
GoFastRacer
HDF Supporter
V-Driver For Life!
Big River, Ca
Posts: 62,625
APPD 7.96
Post Rank: 1
Spectra20
|
|
Posted: July 06 2004,7:50 pm |
Post # 17 |
|
| Quote (AZKC @ July 06 2004,5:33 pm) | Yeah it sounded kinda like a last breath from a dying animal. Sad but its becoming a familiar sound
I run a 3 key crank sprocket but its from Comp Cams not Cloyes probably the same stuff though. I heard that Comp grinds 4 degrees into the cam I use so I leave it in the stock 0* position.
The whole mystery behind all this is it worked just fine in the previous motor that I wiped out the #1 and 2 rod bearings after about 10-15 hours. Then it was in the next motor that ate #8 intake valve in about 2-3 hours now this which happened in about an hour. The heads were used and deemed usable but I'l bet I've got another broken valve |
Cams are usually all ground 4 degrees to account for chain stretch but that don't mean they are no matter what brand. I just finished a motor for a friend of mine and when I degreed the cam, I had to add a 2 degree button to bring it straight up, but he's using a gear drive so he don't have to worry about the chain crap. I've also had to retard a cam to bring it to specs!..That is why "YOU NEVER PUT A CAM IN WITHOUT DEGREEING IT"!.. BTW, a little info here, Cloyes used to be top of the line, but they are not Cloyes anymore, that shit is JUNK!..
|
| Back to top |
| |
| Member # 101 | Joined: 3-03-2003 | |
|
|
GoFastRacer
HDF Supporter
V-Driver For Life!
Big River, Ca
Posts: 62,625
APPD 7.96
Post Rank: 1
Spectra20
|
|
Posted: July 06 2004,8:00 pm |
Post # 18 |
|
| Quote (AZKC @ July 06 2004,7:13 pm) | | When I set the valves I 0 lash them then 1/2 turn which I have heard is a little loose on roller tip rockers. Should I retard my cam 4* next time. |
Ok I admit it, I'm a fkn dumb ass! Please explain what you mean by 1/2 turn lash??? I use feeler guages, not turns!. I don't think I'd go more than .030 lash myself!....Why retard the cam 4*??? degree it to the cam ticket!.
|
| Back to top |
| |
| Member # 101 | Joined: 3-03-2003 | |
|
|
GoFastRacer
HDF Supporter
V-Driver For Life!
Big River, Ca
Posts: 62,625
APPD 7.96
Post Rank: 1
Spectra20
|
|
Posted: July 06 2004,8:19 pm |
Post # 20 |
|
| Quote (AZKC @ July 06 2004,7:13 pm) | Something I picked up on today which need more verification is the Comp Cam 940-16 springs are said to be good up to .500 lift, they sold them to me for a cam that has .570 */-
lift. |
Ok, before you panic check the cam ticket for your spring specs, then check the springs for the closed and open specs at the specified heights, if they meet the specs than it's good to go, who cares what they say it's supposed to be...Even when you buy a matched kit, you "ALWAYS" measure and check things out, just because it's supposed to be the right stuff, that don't mean it is!..AND that goes for ANY cam manufacturer, they are all the same, and if you read the fine print, they all tell you the same thing, if you don't check and verify stuff, once you run it and there's a problem, oh well tough shit, you should have checked it!..  A long time ago I used to use Isky springs(they don't make them, there's only a couple of outfits that make them for everybody) because I lived right down the road from them. I would go in there and check them out right there, sometimes I'd go thru 30 springs before I'd get a set that was right!..
|
| Back to top |
| |
| Member # 101 | Joined: 3-03-2003 | |
|
|
GoFastRacer
HDF Supporter
V-Driver For Life!
Big River, Ca
Posts: 62,625
APPD 7.96
Post Rank: 1
Spectra20
|
|
Posted: July 06 2004,8:24 pm |
Post # 21 |
|
| Quote (AZKC @ July 06 2004,8:01 pm) | I here ya preachin brother  I've been trying to shoestring this project on a very limited budget and its bit me one to many times I'm thinking. May just dry dock the boat till times get better. For the money to build a motor right you can buy another boat that runs  |
Dude, I did the same shit a long time ago. I learned that taking shortcuts to save a buck ended up costing me 10 times as much, not to mention the aggravation!.. No more of that shit!..
Edited by GoFastRacer on July 06 2004,8:26 pm
|
| Back to top |
| |
| Member # 101 | Joined: 3-03-2003 | |
|
|
GoFastRacer
HDF Supporter
V-Driver For Life!
Big River, Ca
Posts: 62,625
APPD 7.96
Post Rank: 1
Spectra20
|
|
Posted: July 06 2004,8:31 pm |
Post # 22 |
|
| Quote (AZKC @ July 06 2004,8:01 pm) | | For the money to build a motor right you can buy another boat that runs |
Nope, I got a 475 under the bench that would be a perfect match for your boat!..
|
| Back to top |
| |
| Member # 101 | Joined: 3-03-2003 | |
|
|
GoFastRacer
HDF Supporter
V-Driver For Life!
Big River, Ca
Posts: 62,625
APPD 7.96
Post Rank: 1
Spectra20
|
|
Posted: July 07 2004,7:25 am |
Post # 25 |
|
| Quote (AZKC @ July 07 2004,7:18 am) | | Quote (GoFastRacer @ July 06 2004,8:00 pm) | | Quote (AZKC @ July 06 2004,7:13 pm) | | When I set the valves I 0 lash them then 1/2 turn which I have heard is a little loose on roller tip rockers. Should I retard my cam 4* next time. |
Ok I admit it, I'm a fkn dumb ass! Â Please explain what you mean by 1/2 turn lash??? I use feeler guages, not turns!. I don't think I'd go more than .030 lash myself!....Why retard the cam 4*??? degree it to the cam ticket!. Â |
Well I've never heard of using feeler gauges on a hydraulic cam either so I guess we're even  |
Didn't know you had a hydraulic cam!. So what you mean is a 1/2 turn "PRELOAD" on the lifter!..
|
| Back to top |
| |
| Member # 101 | Joined: 3-03-2003 | |
|
|
Please help keep HDF free. If you
enjoy this site, feel free to make a donation to keep it running. THANKS!
9-19-2024 Three Word Post.....The Next Generation.... (Rep.#19,291) from: GoFastRacer

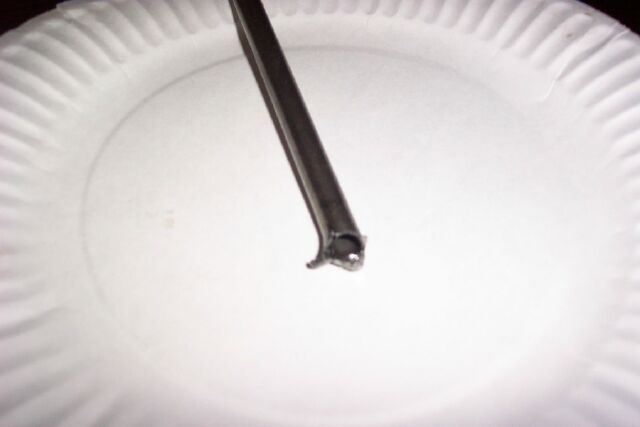

#3 intake pushrod rocker end broke
found both pushrods bent on #7. So now I best ck the rest of them
without having somekind of interference issues. These bent at around 3000-3500 rpm
