Post Icon Posted: Jan. 31 2005,8:36 am Post # 1 see this member send this member a private message  quote this post in reply
So after a couple of years of saying that I was gonna fix the bottom of the boat I finally took the first step :rolleyes .

Off the trailer

Please don't fall

Wait here

Bottoms Up

The resting place,holds the boat great and can roll in and out of the garage.

Some minor scratches

And it fits inside

Gotta figure out how to fix this I guess :rolleyes

Thanks to my buddies John & Tim for comin by and helpin me out  :good .



Now to figure out where to start grindin and sandin :stupid.Stay tuned :sleep

My mother never saw the irony in calling me a son-of-a-bitch.
Back to top
| Member # 254 | Joined: 10-31-2003 |
Sleek-JetMale Offline
Aquarius
 HDF Supporter
The Cooler
5,000 post flame1,000 post flame100 post flame100 post flame100 post flame
Batavia, IL
Posts: 6,351
APPD 0.80
Post Rank: 11
Big 'Ole Inner-tube
Post Icon Posted: Jan. 31 2005,6:02 pm Post # 2 see this member send this member a private message  quote this post in reply
Very ingeniouse on flipping the boat and getting it off the trailer at the same time.   :good

I hope you're going to keep the green metal flake.  :cool    :good

A dog doesn't care if you're rich or poor, educated or illiterate, clever or dull. Give him your heart and he will give you his.
Back to top
| Member # 81 | Joined: 2-07-2003 |
AZKCMale Offline
Leo
 HDF Bronze Supporter
Jack of all trades. Master of none.
10,000 post flame5,000 post flame1,000 post flame100 post flame100 post flame100 post flame100 post flame
Tucson
Posts: 16,439
APPD 2.05
Post Rank: 5
1979 20ft Hawaiian Moonraker
Post Icon Posted: Jan. 31 2005,6:07 pm Post # 3 see this member send this member a private message  quote this post in reply
Yeah gota keep then green metal flake :good

God is Great, Beer is Good, and People are Crazy......

AUTO SAFETY HOUSE

Back to top
| Member # 29 | Joined: 12-18-2002 |
procraftkevMale Offline
Aries
 HDF Supporter
Boat Racer
500 post flame
Hesperia/Lake Havasu
Posts: 557
APPD 0.07
Post Rank: 58
Force Offshore Cat
Post Icon Posted: Jan. 31 2005,6:36 pm Post # 4 see this member send this member a private message  quote this post in reply
Ya gota stay with the retro green flake! :good

Kickn it @ Havasu!
Back to top
| Member # 161 | Joined: 7-21-2003 |
tunamasterMale Offline
Pisces
Boat Racer
500 post flame
Lakewood, California
Posts: 523
APPD 0.07
Post Rank: 60
1995 Commander SS open bow 454 j
Post Icon Posted: Jan. 31 2005,8:55 pm Post # 5 see this member send this member a private message  quote this post in reply
that looks like a lot of work.

Every man bleeds, just like me.
Back to top
| Member # 516 | Joined: 3-08-2004 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,720
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Feb. 01 2005,4:55 am Post # 6 see this member send this member a private message  quote this post in reply
Yep, gotta keep it original for sure!.. :good

Actually it's a pretty easy thing to turn it over, the wife and I turned mine over, it turns over on it's own so there's no strain!.. :)  :good
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,720
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Feb. 01 2005,4:58 am Post # 7 see this member send this member a private message  quote this post in reply

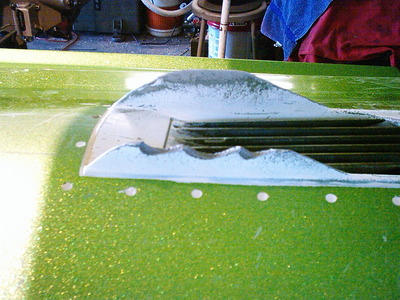

This will have to be replaced for sure!.. :eek  :)

Attached Image
Attached Image

Back to top
website  | Member # 101 | Joined: 3-03-2003 |
ICETOMMale Offline
Gemini
TEAMGREEN
100 post flame100 post flame
REDWOOD CITY,CA
Posts: 270
APPD 0.04
Post Rank: 87
1975 ELIMINATOR
Post Icon Posted: Feb. 01 2005,7:19 am Post # 8 see this member send this member a private message  quote this post in reply
Quote (GoFastRacer @ Feb. 01 2005,4:58 am)
This will have to be replaced for sure!.. :eek  :)

I was actually thinking I could grind it flat at the bottom of the break and make a new piece and weld it on a little at a time so as not to heat it to much.Think that'll work?
Knowbody needs to worry about the GREEN it's not going anywhere,I'm only fixing gouges and scratches it doesnt seem to have any hook so I don't have to deal with all that.

My mother never saw the irony in calling me a son-of-a-bitch.
Back to top
| Member # 254 | Joined: 10-31-2003 |
AZKCMale Offline
Leo
 HDF Bronze Supporter
Jack of all trades. Master of none.
10,000 post flame5,000 post flame1,000 post flame100 post flame100 post flame100 post flame100 post flame
Tucson
Posts: 16,439
APPD 2.05
Post Rank: 5
1979 20ft Hawaiian Moonraker
Post Icon Posted: Feb. 01 2005,9:35 am Post # 9 see this member send this member a private message  quote this post in reply
I would think you could weld it and repair it that way. It would save a lot of work.  But I also think I can build motors :break

God is Great, Beer is Good, and People are Crazy......

AUTO SAFETY HOUSE

Back to top
| Member # 29 | Joined: 12-18-2002 |
ICETOMMale Offline
Gemini
TEAMGREEN
100 post flame100 post flame
REDWOOD CITY,CA
Posts: 270
APPD 0.04
Post Rank: 87
1975 ELIMINATOR
Post Icon Posted: Feb. 27 2005,2:13 pm Post # 10 see this member send this member a private message  quote this post in reply
So I started grinding out the gouges and sanding the area that is gonna get fixxed.Here is a link to the pics of the victim.Bottom Work.If any one wants to throw in their expertice or advice I am listening carefully as this is a learning experience every step of the way for me :stupid .

My mother never saw the irony in calling me a son-of-a-bitch.
Back to top
| Member # 254 | Joined: 10-31-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,720
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Feb. 27 2005,7:43 pm Post # 11 see this member send this member a private message  quote this post in reply
Well it's hard to tell by the pics exactly the condition all those spots are but, what you need to do is grind out the cracks and any air pockets you see. Then build the areas up with cloth and glass and then sand it down smoothe, then you can finish it off with whatever wish, gel, paint, speed coat etc!.. :good
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
ICETOMMale Offline
Gemini
TEAMGREEN
100 post flame100 post flame
REDWOOD CITY,CA
Posts: 270
APPD 0.04
Post Rank: 87
1975 ELIMINATOR
Post Icon Posted: Feb. 28 2005,7:48 am Post # 12 see this member send this member a private message  quote this post in reply
All of those spots are ground out and ready to be repaired.None of them is all that big except for one corner of the back where there was an air pocket that I just happend to grind into :eek to my suprise..
I was told that I could fill most of the grooves with a mixture of gelcoat/resin and talc as a filler,that is what I did on one test patch and it seemes to be pretty good.Is it better with glass cloth? :stupid .I will top it all off with what I hope is a close match to the color that is there already..

My mother never saw the irony in calling me a son-of-a-bitch.
Back to top
| Member # 254 | Joined: 10-31-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,720
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Feb. 28 2005,7:54 pm Post # 13 see this member send this member a private message  quote this post in reply
Well I'm far from being a pro at glassing but I do know that resin/gelcoat is not structural by itself and it just cracks, never heard of using talc don't sound right to me but??..To prove it works you have to put it to the test and see if it holds up. Pesonally I would use cloth with resin then a finish coat and sand it smoothe. If you want the bottom the same color as the rest of the boat you can get the pigment and put it in the gelcoat and spray it on, or just speedcoat the back half!..
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
Sleek-JetMale Offline
Aquarius
 HDF Supporter
The Cooler
5,000 post flame1,000 post flame100 post flame100 post flame100 post flame
Batavia, IL
Posts: 6,351
APPD 0.80
Post Rank: 11
Big 'Ole Inner-tube
Post Icon Posted: Feb. 28 2005,8:12 pm Post # 14 see this member send this member a private message  quote this post in reply
JBB's thread on his Cobra resto is probably the best explanation of fiberglass repair I've seen on the boat boards yet.

The Link:

http://www.riverratlife.com/forums....=000057

Infomaniac described a good technique for laying mat.  By precutting the cloth, placing it on plastic, adding resin, then folding the plastic over to make a sandwich and rolling all the air out.  Then just trim in sandwich to the size you need, peel one side of the plastic away, and apply the mat and resin like a sticker.

A dog doesn't care if you're rich or poor, educated or illiterate, clever or dull. Give him your heart and he will give you his.
Back to top
| Member # 81 | Joined: 2-07-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,720
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Feb. 28 2005,8:26 pm Post # 15 see this member send this member a private message  quote this post in reply
That's kinda what I did on the floor on the Nordic in spots!. :good
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
Sleek-JetMale Offline
Aquarius
 HDF Supporter
The Cooler
5,000 post flame1,000 post flame100 post flame100 post flame100 post flame
Batavia, IL
Posts: 6,351
APPD 0.80
Post Rank: 11
Big 'Ole Inner-tube
Post Icon Posted: Mar. 01 2005,3:16 am Post # 16 see this member send this member a private message  quote this post in reply
Quote (GoFastRacer @ Feb. 28 2005,9:26 pm)
That's kinda what I did on the floor on the Nordic in spots!. :good

I wouldn't know since you stopped posting updates...  :rolleyes  :rolleyes  :ass  :bebe :D  :laugh  :laugh

A dog doesn't care if you're rich or poor, educated or illiterate, clever or dull. Give him your heart and he will give you his.
Back to top
| Member # 81 | Joined: 2-07-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,720
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Mar. 01 2005,4:36 am Post # 17 see this member send this member a private message  quote this post in reply
Quote (Sleek-Jet @ Mar. 01 2005,4:16 am)
Quote (GoFastRacer @ Feb. 28 2005,9:26 pm)
That's kinda what I did on the floor on the Nordic in spots!. :good

I wouldn't know since you stopped posting updates...  :rolleyes  :rolleyes  :ass  :bebe :D  :laugh  :laugh

Only because YOU brought all that shit weather here and I couldn't get anything done, so there!.. :bebe  :bebe  :guns  :guns  :beat  :beat  :laugh  :laugh  :laugh
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
ICETOMMale Offline
Gemini
TEAMGREEN
100 post flame100 post flame
REDWOOD CITY,CA
Posts: 270
APPD 0.04
Post Rank: 87
1975 ELIMINATOR
Post Icon Posted: Mar. 01 2005,7:27 am Post # 18 see this member send this member a private message  quote this post in reply
Yeah I think that I am gonna use something different.None of the spots are too bad so I thing a bondo type of thing is gonna work for most of it and the bigger spots I will be using mat and resin..Thanks for taking time to give advice.. :D  :good

My mother never saw the irony in calling me a son-of-a-bitch.
Back to top
| Member # 254 | Joined: 10-31-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,720
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Mar. 01 2005,10:34 am Post # 19 see this member send this member a private message  quote this post in reply
On the little stuff that's shallow Bondo works good, and to get a real smoothe finish you can use a dab of 3M spot filler, that is not porous like Bondo!.. :good
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
ICETOMMale Offline
Gemini
TEAMGREEN
100 post flame100 post flame
REDWOOD CITY,CA
Posts: 270
APPD 0.04
Post Rank: 87
1975 ELIMINATOR
Post Icon Posted: Mar. 01 2005,2:09 pm Post # 20 see this member send this member a private message  quote this post in reply
Quote (GoFastRacer @ Mar. 01 2005,10:34 am)
On the little stuff that's shallow Bondo works good, and to get a real smoothe finish you can use a dab of 3M spot filler, that is not porous like Bondo!.. :good

But not regular car bondo right.I need some marine underwater shtuff.I think I found some glass filled bondo type o stuff that I am gonna check out later on my way home..

My mother never saw the irony in calling me a son-of-a-bitch.
Back to top
| Member # 254 | Joined: 10-31-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,720
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Mar. 02 2005,4:39 am Post # 21 see this member send this member a private message  quote this post in reply
Quote (ICETOM420 @ Mar. 01 2005,3:09 pm)
Quote (GoFastRacer @ Mar. 01 2005,10:34 am)
On the little stuff that's shallow Bondo works good, and to get a real smoothe finish you can use a dab of 3M spot filler, that is not porous like Bondo!.. :good

But not regular car bondo right.I need some marine underwater shtuff.I think I found some glass filled bondo type o stuff that I am gonna check out later on my way home..

Yep you can use "Bondo", also you can use "Marine-Tex" but it's more expensive though!.. :good
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
ICETOMMale Offline
Gemini
TEAMGREEN
100 post flame100 post flame
REDWOOD CITY,CA
Posts: 270
APPD 0.04
Post Rank: 87
1975 ELIMINATOR
Post Icon Posted: Mar. 02 2005,7:17 am Post # 22 see this member send this member a private message  quote this post in reply
Cool Thanks Alot I guess I better go shopping and get fillin :good so I can get busy sandin and sprayin :D

My mother never saw the irony in calling me a son-of-a-bitch.
Back to top
| Member # 254 | Joined: 10-31-2003 |
GlassManMale Offline
Pisces
 HDF Silver Supporter
Redondo Crew
5,000 post flame500 post flame100 post flame100 post flame
Redondo Beach, California, USA
Posts: 5,761
APPD 0.77
Post Rank: 13
Post Icon Posted: Mar. 02 2005,9:12 am Post # 23 see this member send this member a private message  quote this post in reply
If you need a thickening agent use Cabosil, micro balloons or very finely chopped glass strand. West System makes several densities of micro balloons.

If you only need a small amount, PM me . I'll be happy to send you some. I think I have about 200 lbs left. :good

It's a fact of Life:

After Monday and Tuesday, even the Calendar says : WTF .......
Back to top
| Member # 617 | Joined: 4-29-2004 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,720
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Mar. 03 2005,4:52 am Post # 24 see this member send this member a private message  quote this post in reply
Quote (GlassMan @ Mar. 02 2005,10:12 am)
If you need a thickening agent use Cabosil, micro balloons or very finely chopped glass strand. West System makes several densities of micro balloons.

If you only need a small amount, PM me . I'll be happy to send you some. I think I have about 200 lbs left. :good

Hey G, will that stuff prevent resin from running?, it's a bitch putting it on the stringers it just runs like water, same on the floor it wants ro run and puddle along the stringers!....Thanks...
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
23 replies since Jan. 31 2005,8:36 am < Next Oldest | Next Newest >


[ Track this topic :: Email this topic :: Print this topic ]
add a reply to this topic create a new topic create a new poll

Home » HD Forums » Forums » Boat Tech » Bottoms up

navbarlogo
The Colorado River WebRing
‹ Prev | Hub | Like | Join | Surprise | Next ›

Please help keep HDF free. If you enjoy this site, feel free to make a donation to keep it running. THANKS!
