Post Icon Posted: Feb. 01 2005,7:46 pm Post # 1 see this member send this member a private message  quote this post in reply

OK, after playing with the D/D dyno to see what kinda ball park #'s I could come up with, here is the cam that I've settled on for now:

http://www.crower.com/misc/cam_spec/cam_finder.php?part_num=16239

I figure that my compression ratio should be around 10:1, and running the E-brock heads should give me a nice torque motor for playing around, but still end up in the high 300 hp range.

This cam simulates out to having a nice flat torque curve between 2000 and about 5000 or so.


A dog doesn't care if you're rich or poor, educated or illiterate, clever or dull. Give him your heart and he will give you his.
Back to top
| Member # 81 | Joined: 2-07-2003 |
GoFastRacerMale Offline
HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,720
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Feb. 02 2005,5:13 am Post # 2 see this member send this member a private message  quote this post in reply

That's a pretty nice cam, a little mild I would think though :stupid BTW, did you notice that those specs are based on 1.76 rocker ratio it will be less with 1.73 :D With those Edelbrock heads you should get more than 300hp too!.. :good

What do you have for gears and prop at this time???... :)
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
AZKCMale Offline
Leo
HDF Bronze Supporter
Jack of all trades. Master of none.
10,000 post flame5,000 post flame1,000 post flame100 post flame100 post flame100 post flame100 post flame
Tucson
Posts: 16,439
APPD 2.05
Post Rank: 5
1979 20ft Hawaiian Moonraker
Post Icon Posted: Feb. 02 2005,9:32 am Post # 3 see this member send this member a private message  quote this post in reply

What are you building a grandpas boat :bebe  put a cam in that thing  :D  :laugh


God is Great, Beer is Good, and People are Crazy......

AUTO SAFETY HOUSE

Back to top
| Member # 29 | Joined: 12-18-2002 |
AZKCMale Offline
Leo
HDF Bronze Supporter
Jack of all trades. Master of none.
10,000 post flame5,000 post flame1,000 post flame100 post flame100 post flame100 post flame100 post flame
Tucson
Posts: 16,439
APPD 2.05
Post Rank: 5
1979 20ft Hawaiian Moonraker
Post Icon Posted: Feb. 02 2005,9:40 am Post # 4 see this member send this member a private message  quote this post in reply

:good This will bark a little and still be drivable, Comp Cam

Part Number 33-240-4
Engine 1963-1976 Ford
352ci-428ci
8cyl.
Grind Number  FB 292H-10
Description

--------------------------------------------------------------------------------

 Intake Exhaust
Valve Adjustment 0  0
Gross Valve Lift 0.56  0.56
Duration At 0.006 Tappet Lift 292  292

--------------------------------------------------------------------------------

Valve Timing At 0.006
 Open Close
Intake 40  72
Exhaust 80  32

--------------------------------------------------------------------------------

These Specs Are For The Cam Installed At 106 Intake CL
 Intake Exhaust
Duration At 0.05  244  244
Lobe Lift 0.3235  0.3235
Lobe Separation 110

--------------------------------------------------------------------------------

Recommended Valve Springs 924-16


God is Great, Beer is Good, and People are Crazy......

AUTO SAFETY HOUSE

Back to top
| Member # 29 | Joined: 12-18-2002 |
Sleek-JetMale Offline
Aquarius
HDF Supporter
The Cooler
5,000 post flame1,000 post flame100 post flame100 post flame100 post flame
Batavia, IL
Posts: 6,351
APPD 0.80
Post Rank: 11
Big 'Ole Inner-tube
Post Icon Posted: Feb. 02 2005,1:19 pm Post # 5 see this member send this member a private message  quote this post in reply

Quote (GoFastRacer @ Feb. 02 2005,6:13 am)
That's a pretty nice cam, a little mild I would think though :stupid BTW, did you notice that those specs are based on 1.76 rocker ratio it will be less with 1.73 :D With those Edelbrock heads you should get more than 300hp too!.. :good

What do you have for gears and prop at this time???... :)

That's as close to the factory "B" cam as I could find.   In fact I never could find the specs on a "B" cam.  Lunati lists a OE grind for a "C60Z-B" 428 CJ cam as being pretty close to the Crower though.

The 'puter actually puts the HP over 400, but I've found that the D/D is a little optomistic at times.  So I figure I'm looking at around 380 - 390 hp with this cam.  That's what I mean by high 300's on the hp.

If I go over 220 on the duration, without being able to change much more on the engine, than the torque falls on it's ass.  That comp cam makes a shit load of hp, but the Crower makes more torque over a larger rpm band.  Also it's a solid, and I decided I don't really want to mess with that right now.  :D

Off the top of my head I don't know the gears or prop, I've got them writen down here somewhere.


Edited by Sleek-Jet on Feb. 03 2005,2:43 am


A dog doesn't care if you're rich or poor, educated or illiterate, clever or dull. Give him your heart and he will give you his.
Back to top
| Member # 81 | Joined: 2-07-2003 |
AZKCMale Offline
Leo
HDF Bronze Supporter
Jack of all trades. Master of none.
10,000 post flame5,000 post flame1,000 post flame100 post flame100 post flame100 post flame100 post flame
Tucson
Posts: 16,439
APPD 2.05
Post Rank: 5
1979 20ft Hawaiian Moonraker
Post Icon Posted: Feb. 02 2005,3:18 pm Post # 6 see this member send this member a private message  quote this post in reply

Torque smork RPM's and HP is where its at :break  :laugh


God is Great, Beer is Good, and People are Crazy......

AUTO SAFETY HOUSE

Back to top
| Member # 29 | Joined: 12-18-2002 |
Sleek-JetMale Offline
Aquarius
HDF Supporter
The Cooler
5,000 post flame1,000 post flame100 post flame100 post flame100 post flame
Batavia, IL
Posts: 6,351
APPD 0.80
Post Rank: 11
Big 'Ole Inner-tube
Post Icon Posted: Feb. 02 2005,3:31 pm Post # 7 see this member send this member a private message  quote this post in reply

Your Comp cam is down 50 ft/lbs and only gains me about 25 hp over the crower.... at an additional 1500 rpm.

Besides, I'm going to need as much grunt as I can get, what with having to pull the blue canoe all over the place.  :D  :ass


Edited by Sleek-Jet on Feb. 02 2005,5:53 pm


A dog doesn't care if you're rich or poor, educated or illiterate, clever or dull. Give him your heart and he will give you his.
Back to top
| Member # 81 | Joined: 2-07-2003 |
AZKCMale Offline
Leo
HDF Bronze Supporter
Jack of all trades. Master of none.
10,000 post flame5,000 post flame1,000 post flame100 post flame100 post flame100 post flame100 post flame
Tucson
Posts: 16,439
APPD 2.05
Post Rank: 5
1979 20ft Hawaiian Moonraker
Post Icon Posted: Feb. 02 2005,3:53 pm Post # 8 see this member send this member a private message  quote this post in reply

Har Har, are you sure its not to get the Cambell up on plane with that Rhino lining yellow paint job  :bebe Focker :laugh


God is Great, Beer is Good, and People are Crazy......

AUTO SAFETY HOUSE

Back to top
| Member # 29 | Joined: 12-18-2002 |
Sleek-JetMale Offline
Aquarius
HDF Supporter
The Cooler
5,000 post flame1,000 post flame100 post flame100 post flame100 post flame
Batavia, IL
Posts: 6,351
APPD 0.80
Post Rank: 11
Big 'Ole Inner-tube
Post Icon Posted: Feb. 02 2005,5:12 pm Post # 9 see this member send this member a private message  quote this post in reply

At least my boat is not cracked....  :ass  :bebe  :fight

:D  :laugh


Edited by Sleek-Jet on Feb. 02 2005,5:13 pm


A dog doesn't care if you're rich or poor, educated or illiterate, clever or dull. Give him your heart and he will give you his.
Back to top
| Member # 81 | Joined: 2-07-2003 |
AZKCMale Offline
Leo
HDF Bronze Supporter
Jack of all trades. Master of none.
10,000 post flame5,000 post flame1,000 post flame100 post flame100 post flame100 post flame100 post flame
Tucson
Posts: 16,439
APPD 2.05
Post Rank: 5
1979 20ft Hawaiian Moonraker
Post Icon Posted: Feb. 02 2005,5:51 pm Post # 10 see this member send this member a private message  quote this post in reply

Yet :rotflmao


God is Great, Beer is Good, and People are Crazy......

AUTO SAFETY HOUSE

Back to top
| Member # 29 | Joined: 12-18-2002 |
GoFastRacerMale Offline
HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,720
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Feb. 03 2005,4:54 am Post # 11 see this member send this member a private message  quote this post in reply

Quote (Sleek-Jet @ Feb. 02 2005,2:19 pm)
That's as close to the factory "B" cam as I could find.   In fact I never could find the specs on a "B" cam.  Lunati lists a OE grind for a "C60Z-B" 428 CJ cam as being pretty close to the Crower though.

The 'puter actually puts the HP over 400, but I've found that the D/D is a little optomistic at times.  So I figure I'm looking at around 380 - 390 hp with this cam.  That's what I mean by high 300's on the hp.

If I go over 220 on the duration, without being able to change much more on the engine, than the torque falls on it's ass.  That comp cam makes a shit load of hp, but the Crower makes more torque over a larger rpm band.  Also it's a solid, and I decided I don't really want to mess with that right now.  :D

Off the top of my head I don't know the gears or prop, I've got them writen down here somewhere.

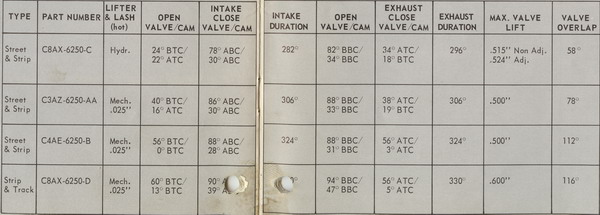

Just dug up an old factory muscle catalog, this is easier to read!..Back in the day Crower did a hell of a lot of R&D with the FE and have about the best cams out there for them!.. :good


Edited by GoFastRacer on Feb. 03 2005,7:26 am

Attached Image
Attached Image

Back to top
website  | Member # 101 | Joined: 3-03-2003 |
Sleek-JetMale Offline
Aquarius
HDF Supporter
The Cooler
5,000 post flame1,000 post flame100 post flame100 post flame100 post flame
Batavia, IL
Posts: 6,351
APPD 0.80
Post Rank: 11
Big 'Ole Inner-tube
Post Icon Posted: Feb. 04 2005,1:27 pm Post # 12 see this member send this member a private message  quote this post in reply

OK, since I'm going with adjustable rocker arms, I started playing around with solid cams.  Right now it looks like this one.

http://www.crower.com/misc....=17&y=1

D/D puts the power at 462 hp@5500 rpm and 486 ft/lbs@4500 rpm.  Of course that is computer numbers.

A little more duration than I've been considering, but I think the lobe seperation helps out.   :stupid


A dog doesn't care if you're rich or poor, educated or illiterate, clever or dull. Give him your heart and he will give you his.
Back to top
| Member # 81 | Joined: 2-07-2003 |
GoFastRacerMale Offline
HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,720
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Feb. 04 2005,6:44 pm Post # 13 see this member send this member a private message  quote this post in reply

Now that's more like it :good that should work good, of course since you don't know what gear and prop you have, it can be a factor but you'll find out quick enough! :D Dyno can be very accurate as long as all the input is accurate, the main factor is the heads, if you have the flow numbers for the heads you're using then it won't be just an estimate and you can get very close!. I did a 468 for a street Camaro for a friend and it came out at 750hp(don't remember the torque) then he built the motor according to the specs on D/D, he decided to put it on the dyno, on the best tune up it came in within 2hp and the torque was right on!...Also it's a good idea that you're going with a solid instead of a hydraulic because there's a few things that you can do to make the bottom end live a lot longer under severe use!.. :good
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
Sleek-JetMale Offline
Aquarius
HDF Supporter
The Cooler
5,000 post flame1,000 post flame100 post flame100 post flame100 post flame
Batavia, IL
Posts: 6,351
APPD 0.80
Post Rank: 11
Big 'Ole Inner-tube
Post Icon Posted: Feb. 05 2005,5:24 am Post # 14 see this member send this member a private message  quote this post in reply

That was my next question.  What do I have to do now that I'm going to be running a solid lifter cam???


A dog doesn't care if you're rich or poor, educated or illiterate, clever or dull. Give him your heart and he will give you his.
Back to top
| Member # 81 | Joined: 2-07-2003 |
GoFastRacerMale Offline
HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,720
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Feb. 05 2005,5:48 am Post # 15 see this member send this member a private message  quote this post in reply

Since you'll be running a solid you don't need all that oil up on top. You can plug up the lifter galleys and open up the restrictor in the back of the block to force oil to the mains since they get fed last. Also drill out that puny oil passage from the pump to the filter adaptor and if you have a 390 adaptor it should be replaced with a 427 one, if you look at the passage you'll see what I mean, you can also drill out the feed passage going to the top galley, all 427's came with larger passages. Another thing to do is match the oil holes in the block to the main bearings!.. I'll go thru my stuff and look for some pics of this stuff and post em for ya!.. :good
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
jordyMale Offline
Taurus
HDF Bronze Supporter
Time goes by, the bullshit gets deeper!
1,000 post flame1,000 post flame100 post flame100 post flame100 post flame100 post flame
Phoenix, Arizona, USA
Posts: 2,467
APPD 0.31
Post Rank: 27
Post Icon Posted: Feb. 06 2005,10:36 am Post # 16 see this member send this member a private message  quote this post in reply

Solid is lots of fun.  You'll get very proficient in running the valves.   :rotflmao  :good  :D


Everyone is a tough guy, until you meet one.
Back to top
| Member # 3 | Joined: 12-03-2002 |
procraftkevMale Offline
Aries
HDF Supporter
Boat Racer
500 post flame
Hesperia/Lake Havasu
Posts: 557
APPD 0.07
Post Rank: 58
Force Offshore Cat
Post Icon Posted: Feb. 06 2005,12:15 pm Post # 17 see this member send this member a private message  quote this post in reply

Should get some good rpms too. :D


Kickn it @ Havasu!
Back to top
| Member # 161 | Joined: 7-21-2003 |
GoFastRacerMale Offline
HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,720
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Feb. 06 2005,5:45 pm Post # 18 see this member send this member a private message  quote this post in reply

Quote (jordanpaulk @ Feb. 06 2005,11:36 am)
Solid is lots of fun.  You'll get very proficient in running the valves.   :rotflmao  :good  :D

Aftermarket FE rockers use a stud and jam nut, once tighten they don't go nowhere!. ;)  :good
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
GoFastRacerMale Offline
HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,720
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Feb. 06 2005,5:46 pm Post # 19 see this member send this member a private message  quote this post in reply

Quote (procraftkev @ Feb. 06 2005,1:15 pm)
Should get some good rpms too. :D

Yep!.. ;)  :good
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
Kindsvater FlatMale Offline
Aries

Dead Man Sleeping
100 post flame100 post flame
Northern Ca
Posts: 234
APPD 0.03
Post Rank: 97
Post Icon Posted: Feb. 11 2005,11:58 pm Post # 20 see this member send this member a private message  quote this post in reply

We run the solid in our little FE motor. Not to many problems. Broke a few rocker shafts. The cam in the galaxie is a little bit bigger.

You need this intake.  :D



Back to top
website  | Member # 15 | Joined: 12-04-2002 |
AZKCMale Offline
Leo
HDF Bronze Supporter
Jack of all trades. Master of none.
10,000 post flame5,000 post flame1,000 post flame100 post flame100 post flame100 post flame100 post flame
Tucson
Posts: 16,439
APPD 2.05
Post Rank: 5
1979 20ft Hawaiian Moonraker
Post Icon Posted: Feb. 12 2005,7:54 am Post # 21 see this member send this member a private message  quote this post in reply

Sneaky bastad :eek  :laugh


God is Great, Beer is Good, and People are Crazy......

AUTO SAFETY HOUSE

Back to top
| Member # 29 | Joined: 12-18-2002 |
GoFastRacerMale Offline
HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,720
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Feb. 13 2005,6:27 am Post # 22 see this member send this member a private message  quote this post in reply

Quote (Kindsvater Flat @ Feb. 12 2005,12:58 am)
We run the solid in our little FE motor. Not to many problems. Broke a few rocker shafts. The cam in the galaxie is a little bit bigger.

You need this intake.  :D



I used that manifold, that's a good one! :good In the small FE's the trick was to swap the rocker shafts with 427 pieces, they are better quality, learned that the hard way in my GT390!. :beat  :D
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
procraftkevMale Offline
Aries
HDF Supporter
Boat Racer
500 post flame
Hesperia/Lake Havasu
Posts: 557
APPD 0.07
Post Rank: 58
Force Offshore Cat
Post Icon Posted: Feb. 13 2005,7:57 am Post # 23 see this member send this member a private message  quote this post in reply

:good Nice plumbing :good


Kickn it @ Havasu!
Back to top
| Member # 161 | Joined: 7-21-2003 |
22 replies since Feb. 01 2005,7:46 pm < Next Oldest | Next Newest >


[ Track this topic :: Email this topic :: Print this topic ]
add a reply to this topic create a new topic create a new poll

navbarlogo
The Colorado River WebRing
‹ Prev | Hub | Like | Join | Surprise | Next ›

Please help keep HDF free. If you enjoy this site, feel free to make a donation to keep it running. THANKS!
