Post Icon Posted: Mar. 06 2005,6:52 am Post # 1 see this member send this member a private message  quote this post in reply

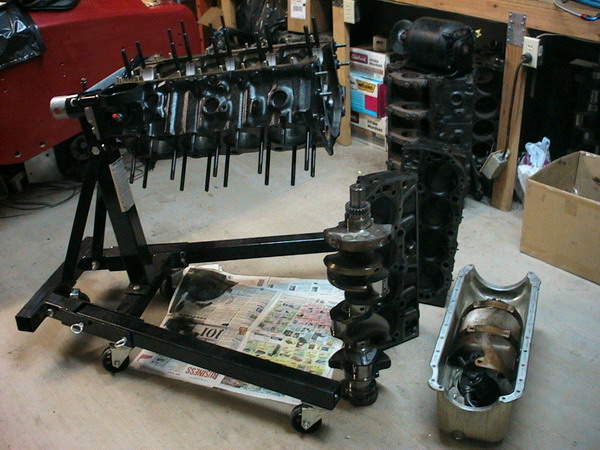

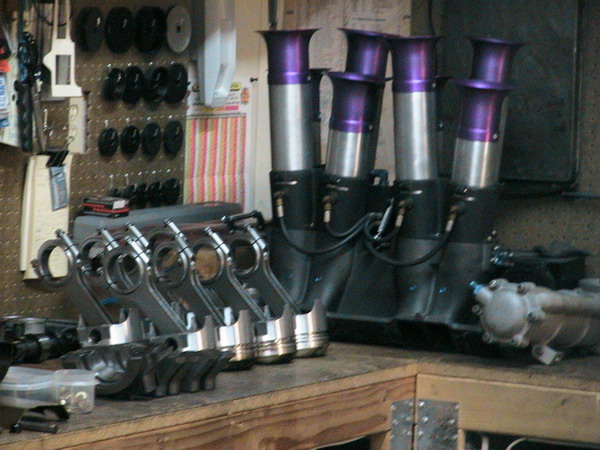

Well since good ole "Sleek" brought all this damn weather here and screwed up the Nordic project,  :beat  :laugh I won't have it done for Needles!.. :angry That means I'll have to take the Daytona!.. Sooo, since it's been 5 years since I built this motor and doing nothing but beatin the shit out of it, I figure I'd better take a look around in there. Well to my surprise everything was clean as a whistle, bearings look like they just came out of the box, cut the filter open and not one spec of crud!. :good  :jumpie So WTF do I do now :stupid piss on it I'll just put the thing back together and just keep on beatin the shit out of it!.. :good  :jumpie  :laugh

Attached Image
Attached Image

Back to top
website  | Member # 101 | Joined: 3-03-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,721
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Mar. 06 2005,6:53 am Post # 2 see this member send this member a private message  quote this post in reply
Everything looked nice and clean! :good

Edited by GoFastRacer on Mar. 06 2005,6:57 am

Attached Image
Attached Image

Back to top
website  | Member # 101 | Joined: 3-03-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,721
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Mar. 06 2005,6:54 am Post # 3 see this member send this member a private message  quote this post in reply

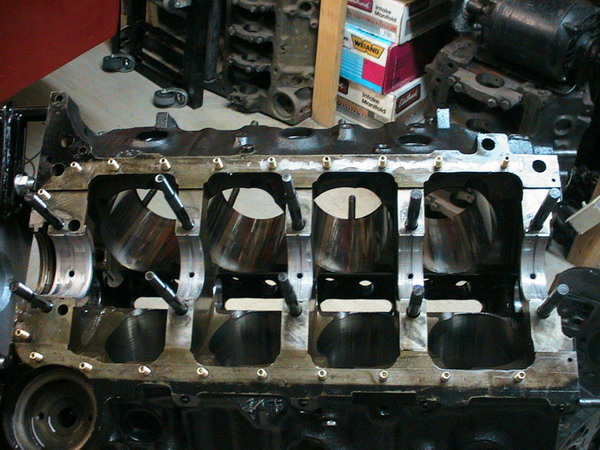

Mains look like new!. :good

Attached Image
Attached Image

Back to top
website  | Member # 101 | Joined: 3-03-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,721
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Mar. 06 2005,6:54 am Post # 4 see this member send this member a private message  quote this post in reply
And the rods!. :good

Attached Image
Attached Image

Back to top
website  | Member # 101 | Joined: 3-03-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,721
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Mar. 06 2005,6:56 am Post # 5 see this member send this member a private message  quote this post in reply

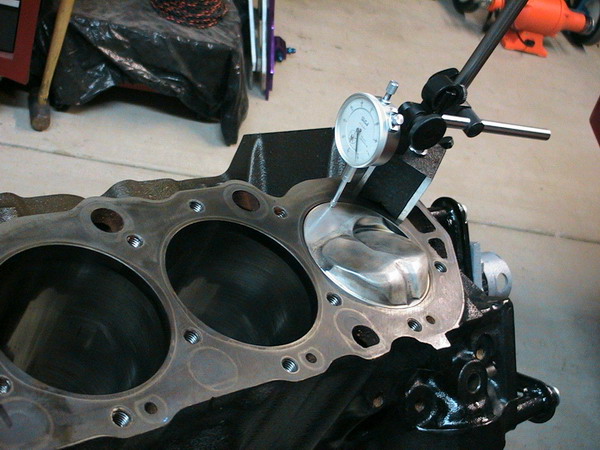

Thought about decking the block but I'm at .000 now so screw it, it's just going back together the way it is!.. :good  :jumpie

Attached Image
Attached Image

Back to top
website  | Member # 101 | Joined: 3-03-2003 |
Sleek-JetMale Offline
Aquarius
 HDF Supporter
The Cooler
5,000 post flame1,000 post flame100 post flame100 post flame100 post flame
Batavia, IL
Posts: 6,351
APPD 0.80
Post Rank: 11
Big 'Ole Inner-tube
Post Icon Posted: Mar. 06 2005,7:29 am Post # 6 see this member send this member a private message  quote this post in reply
Quote (GoFastRacer @ Mar. 06 2005,7:52 am)
Well since good ole "Sleek" brought all this damn weather here and screwed up the Nordic project...

Man, I get blamed for everything...  :(  :alien    :laugh

I could suggest you move that Rayson outside and pull the Nordic in so you could work on it.... :D

A dog doesn't care if you're rich or poor, educated or illiterate, clever or dull. Give him your heart and he will give you his.
Back to top
| Member # 81 | Joined: 2-07-2003 |
AZKCMale Offline
Leo
 HDF Bronze Supporter
Jack of all trades. Master of none.
10,000 post flame5,000 post flame1,000 post flame100 post flame100 post flame100 post flame100 post flame
Tucson
Posts: 16,439
APPD 2.05
Post Rank: 5
1979 20ft Hawaiian Moonraker
Post Icon Posted: Mar. 06 2005,7:30 am Post # 7 see this member send this member a private message  quote this post in reply
Do you use new rings when you put it back together?

God is Great, Beer is Good, and People are Crazy......

AUTO SAFETY HOUSE

Back to top
| Member # 29 | Joined: 12-18-2002 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,721
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Mar. 06 2005,7:36 am Post # 8 see this member send this member a private message  quote this post in reply
Oops, forgot to mention that, :banghead  yes I am treating it to a new set of rings!.. :good
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,721
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Mar. 06 2005,7:37 am Post # 9 see this member send this member a private message  quote this post in reply
Quote (Sleek-Jet @ Mar. 06 2005,8:29 am)
Quote (GoFastRacer @ Mar. 06 2005,7:52 am)
Well since good ole "Sleek" brought all this damn weather here and screwed up the Nordic project...

Man, I get blamed for everything...  :(  :alien    :laugh

I could suggest you move that Rayson outside and pull the Nordic in so you could work on it.... :D

That will never happen!. :D  :laugh  :laugh
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
Sleek-JetMale Offline
Aquarius
 HDF Supporter
The Cooler
5,000 post flame1,000 post flame100 post flame100 post flame100 post flame
Batavia, IL
Posts: 6,351
APPD 0.80
Post Rank: 11
Big 'Ole Inner-tube
Post Icon Posted: Mar. 06 2005,7:41 am Post # 10 see this member send this member a private message  quote this post in reply
You do realize that when (or rather if  :rolleyes ) you put that boat in the water it will get wet...  :ass  :ass  :bebe

:D  :laugh

A dog doesn't care if you're rich or poor, educated or illiterate, clever or dull. Give him your heart and he will give you his.
Back to top
| Member # 81 | Joined: 2-07-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,721
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Mar. 06 2005,7:43 am Post # 11 see this member send this member a private message  quote this post in reply
Quote (Sleek-Jet @ Mar. 06 2005,8:41 am)
You do realize that when (or rather if  :rolleyes ) you put that boat in the water it will get wet...  :ass  :ass  :bebe

:D  :laugh

Shit, I didn't know that! :bebe  :ass  :laugh  :laugh
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,721
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Mar. 11 2005,4:56 am Post # 12 see this member send this member a private message  quote this post in reply

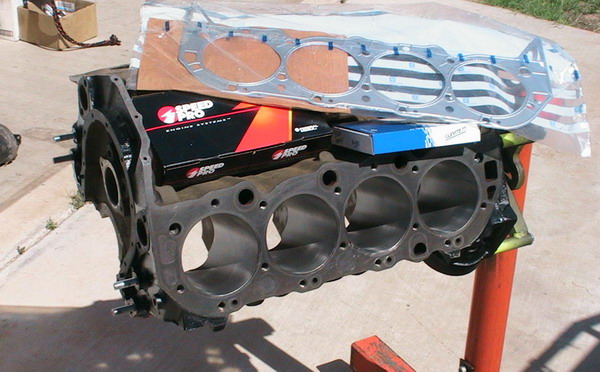

Well got the block back with a nice fresh hone and got er all washed and cleaned, and big Brown delivered my parts yesterday so I guess I can start putting it back together!.. I should get the rings fitted and the shortblock done today!. :good  :jumpie

Attached Image
Attached Image

Back to top
website  | Member # 101 | Joined: 3-03-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,721
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Mar. 16 2005,5:42 am Post # 13 see this member send this member a private message  quote this post in reply
Well got everything cleaned up and the bottom end done!.Guess I'll throw the cam in and button her up!. :good

Attached Image
Attached Image

Back to top
website  | Member # 101 | Joined: 3-03-2003 |
AZKCMale Offline
Leo
 HDF Bronze Supporter
Jack of all trades. Master of none.
10,000 post flame5,000 post flame1,000 post flame100 post flame100 post flame100 post flame100 post flame
Tucson
Posts: 16,439
APPD 2.05
Post Rank: 5
1979 20ft Hawaiian Moonraker
Post Icon Posted: Mar. 16 2005,6:54 am Post # 14 see this member send this member a private message  quote this post in reply

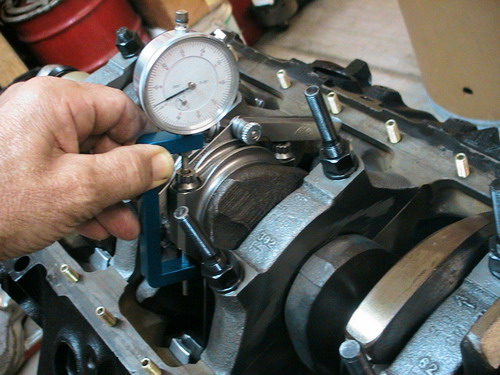

Cking rod bolt stretch :stupid I'm guessing. :confused

God is Great, Beer is Good, and People are Crazy......

AUTO SAFETY HOUSE

Back to top
| Member # 29 | Joined: 12-18-2002 |
shuemanMale Offline
Libra
 HDF Gold Supporter
Born To Drive...
10,000 post flame5,000 post flame1,000 post flame1,000 post flame100 post flame100 post flame
Alta Loma CA
Posts: 17,228
APPD 2.27
Post Rank: 4
NADA
Post Icon Posted: Mar. 16 2005,8:14 am Post # 15 see this member send this member a private message  quote this post in reply
Good stuff.... :good   Thanks for taking the time to share the pix.... :beer
Back to top
| Member # 376 | Joined: 2-01-2004 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,721
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Mar. 16 2005,11:01 am Post # 16 see this member send this member a private message  quote this post in reply
Quote (shueman @ Mar. 16 2005,9:14 am)
Good stuff.... :good   Thanks for taking the time to share the pix.... :beer

Thanks, I'll have more later!.. :good
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,721
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Mar. 16 2005,11:03 am Post # 17 see this member send this member a private message  quote this post in reply
Quote (AZKC @ Mar. 16 2005,7:54 am)
Cking rod bolt stretch :stupid I'm guessing. :confused

Yep, the only way to torque rod bolts!.. :)  :good
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,721
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Mar. 16 2005,7:21 pm Post # 18 see this member send this member a private message  quote this post in reply

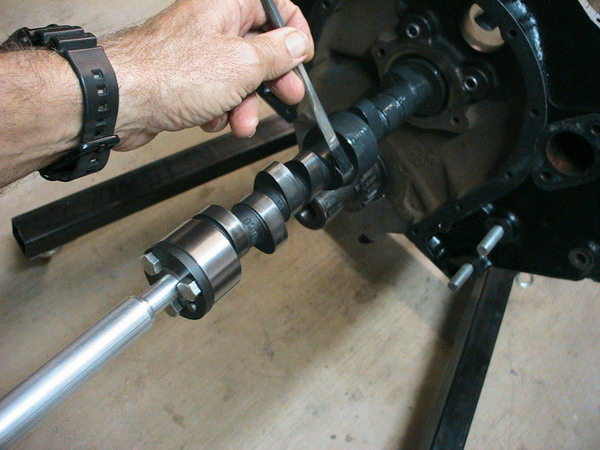

Well progressing right along, sure goes quick when all you have to do is put it back together :laugh  Here the bumpstick is going back in, after 13 yrs it still looks like new, not bad for a flat tappet!. :good

Attached Image
Attached Image

Back to top
website  | Member # 101 | Joined: 3-03-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,721
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Mar. 16 2005,7:26 pm Post # 19 see this member send this member a private message  quote this post in reply

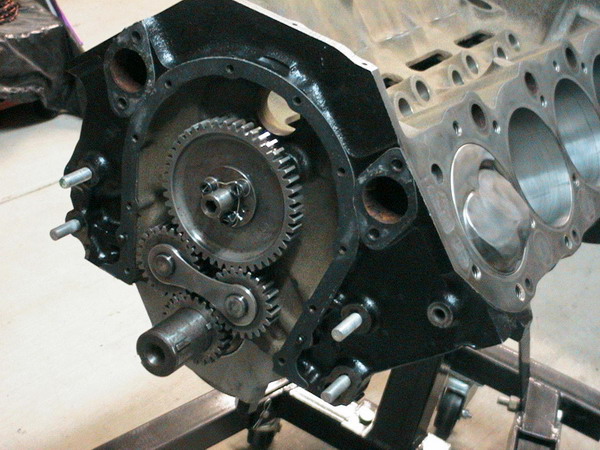

Gear drive is installed and since the cam has 2 degrees built in for chain stretch I set it at 0, that will give me 2 degrees advance which is where it runs the best!. :good

Attached Image
Attached Image

Back to top
website  | Member # 101 | Joined: 3-03-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,721
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Mar. 16 2005,7:28 pm Post # 20 see this member send this member a private message  quote this post in reply

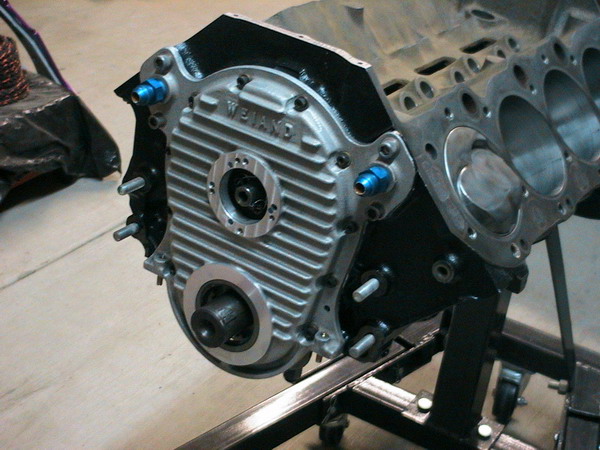

Timing cover installed and ready for water and injector pumps!. :good

Attached Image
Attached Image

Back to top
website  | Member # 101 | Joined: 3-03-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,721
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Mar. 16 2005,7:37 pm Post # 21 see this member send this member a private message  quote this post in reply

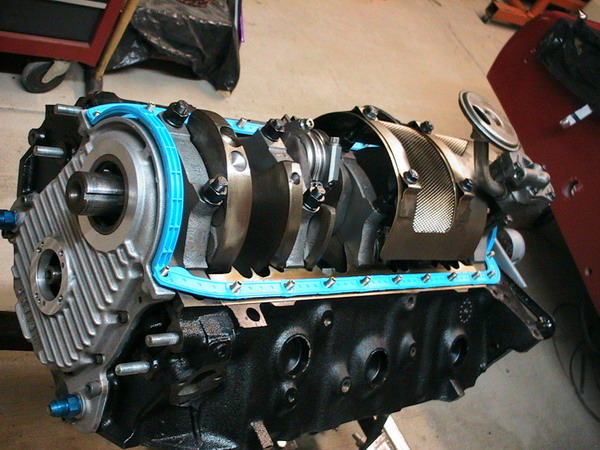

Ready for the oil pan, those one piece gaskets sure are the shit, you can use them over and over again and if the pan ends aren't beat up you don't need silicone and you can't over tighten them!.. :good  :good Next we'll inspect the heads!. :good

Attached Image
Attached Image

Back to top
website  | Member # 101 | Joined: 3-03-2003 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,721
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: Mar. 18 2005,4:50 am Post # 22 see this member send this member a private message  quote this post in reply

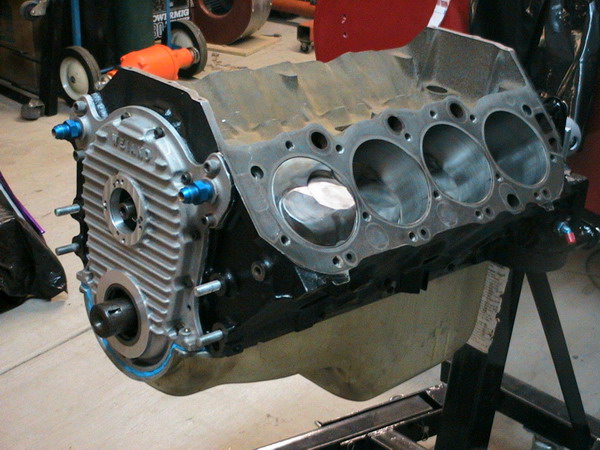

Oil pan's on, now it's time to clean the heads and check valve springs!. :good

Attached Image
Attached Image

Back to top
website  | Member # 101 | Joined: 3-03-2003 |
shuemanMale Offline
Libra
 HDF Gold Supporter
Born To Drive...
10,000 post flame5,000 post flame1,000 post flame1,000 post flame100 post flame100 post flame
Alta Loma CA
Posts: 17,228
APPD 2.27
Post Rank: 4
NADA
Post Icon Posted: Mar. 18 2005,6:16 am Post # 23 see this member send this member a private message  quote this post in reply
BEAUTY...thanks for sharing, again...!!!  :good  :beer
Back to top
| Member # 376 | Joined: 2-01-2004 |
MrCordMale Offline
Libra
 HDF Silver Supporter
In need of a River Trip!
1,000 post flame1,000 post flame100 post flame
Irvine Ca
Posts: 2,179
APPD 0.30
Post Rank: 30
28' Magic H-Deck
Post Icon Posted: Mar. 18 2005,3:02 pm Post # 24 see this member send this member a private message  quote this post in reply
Gofast... what type of compression will that motor endup with... Ive never seen pistons that protrude that much!  Sweet motor :good

Never Trust Anyone That Talks Too Fast.... They are hoping you miss something!
Back to top
| Member # 1117 | Joined: 3-01-2005 |
procraftkevMale Offline
Aries
 HDF Supporter
Boat Racer
500 post flame
Hesperia/Lake Havasu
Posts: 557
APPD 0.07
Post Rank: 58
Force Offshore Cat
Post Icon Posted: Mar. 18 2005,3:10 pm Post # 25 see this member send this member a private message  quote this post in reply
GFR Very nice build up pic's :good

Kickn it @ Havasu!
Back to top
| Member # 161 | Joined: 7-21-2003 |
53 replies since Mar. 06 2005,6:52 am < Next Oldest | Next Newest >
Pages: [1] 2 3

[ Track this topic :: Email this topic :: Print this topic ]
add a reply to this topic create a new topic create a new poll

Home » HD Forums » Forums » Boat Tech » Tear Down!

navbarlogo
The Colorado River WebRing
‹ Prev | Hub | Like | Join | Surprise | Next ›

Please help keep HDF free. If you enjoy this site, feel free to make a donation to keep it running. THANKS!
