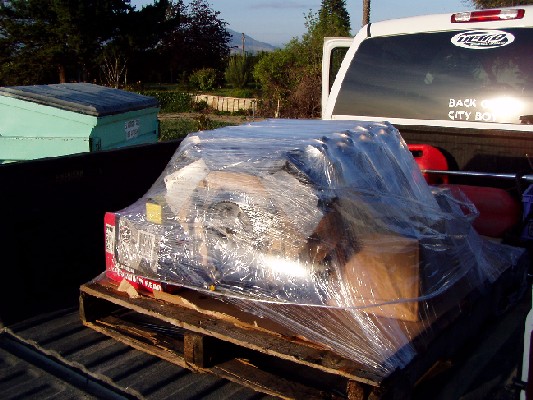

:jumpie  :jumpie  I picked up my long block from my builder. I didn't have time to build it myself. After reading about  KC's tread I think it was a good idea. This is the most $$ I've spent on an engine.

Attached Image
Attached Image

DON'T POKE THE BEAR!
Back to top
| Member # 1201 | Joined: 3-17-2005 |
HAKUNA MA"TATA"Male Offline
Taurus
 HDF Supporter
Boater
100 post flame
SANTA PAULA
Posts: 170
APPD 0.02
Post Rank: 116
22 ULTRA STEALTH
Post Icon Posted: May 02 2005,2:21 pm Post # 2 see this member send this member a private message  quote this post in reply

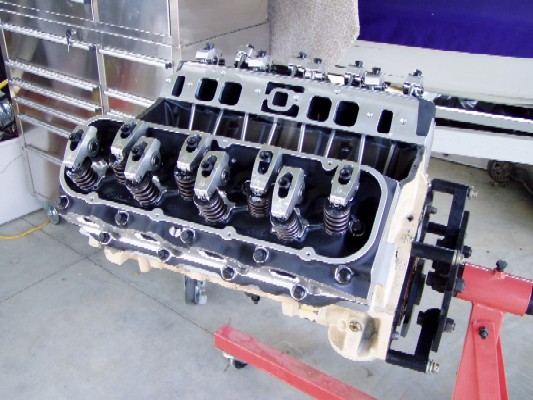

another

Attached Image
Attached Image

DON'T POKE THE BEAR!
Back to top
| Member # 1201 | Joined: 3-17-2005 |
HAKUNA MA"TATA"Male Offline
Taurus
 HDF Supporter
Boater
100 post flame
SANTA PAULA
Posts: 170
APPD 0.02
Post Rank: 116
22 ULTRA STEALTH
Post Icon Posted: May 02 2005,2:22 pm Post # 3 see this member send this member a private message  quote this post in reply
another

Attached Image
Attached Image

DON'T POKE THE BEAR!
Back to top
| Member # 1201 | Joined: 3-17-2005 |
HAKUNA MA"TATA"Male Offline
Taurus
 HDF Supporter
Boater
100 post flame
SANTA PAULA
Posts: 170
APPD 0.02
Post Rank: 116
22 ULTRA STEALTH
Post Icon Posted: May 02 2005,2:22 pm Post # 4 see this member send this member a private message  quote this post in reply

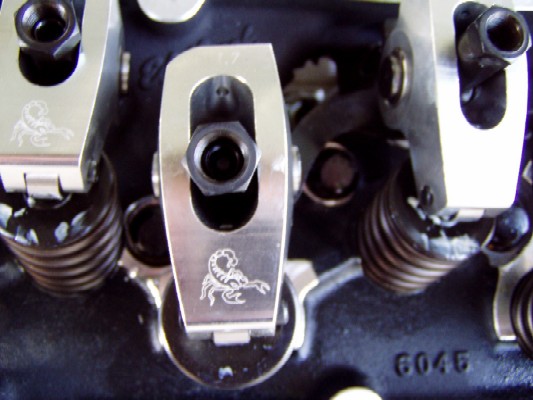

jewels

Attached Image
Attached Image

DON'T POKE THE BEAR!
Back to top
| Member # 1201 | Joined: 3-17-2005 |
HAKUNA MA"TATA"Male Offline
Taurus
 HDF Supporter
Boater
100 post flame
SANTA PAULA
Posts: 170
APPD 0.02
Post Rank: 116
22 ULTRA STEALTH
Post Icon Posted: May 02 2005,2:23 pm Post # 5 see this member send this member a private message  quote this post in reply

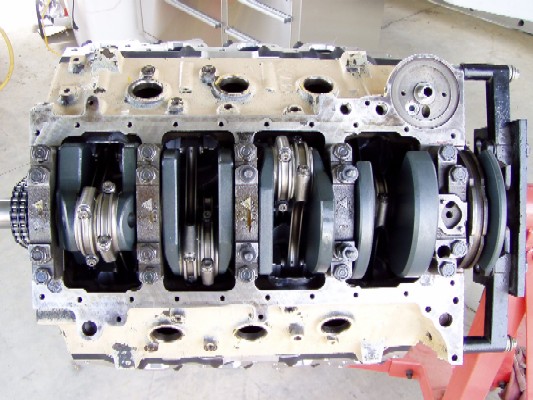

bottom

Attached Image
Attached Image

DON'T POKE THE BEAR!
Back to top
| Member # 1201 | Joined: 3-17-2005 |
HAKUNA MA"TATA"Male Offline
Taurus
 HDF Supporter
Boater
100 post flame
SANTA PAULA
Posts: 170
APPD 0.02
Post Rank: 116
22 ULTRA STEALTH
Post Icon Posted: May 02 2005,2:24 pm Post # 6 see this member send this member a private message  quote this post in reply

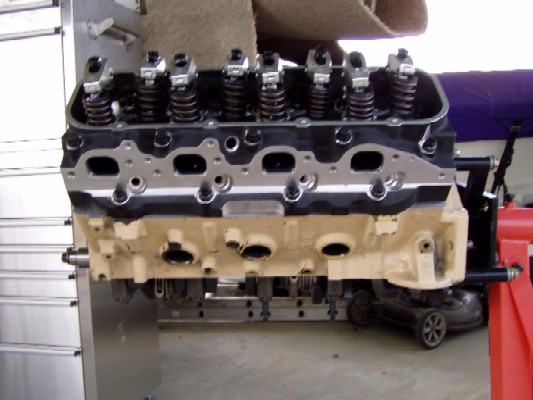

side. It is now Purple in Gofasts honor! I post more as I go.

Attached Image
Attached Image

DON'T POKE THE BEAR!
Back to top
| Member # 1201 | Joined: 3-17-2005 |
AZKCMale Offline
Leo
 HDF Bronze Supporter
Jack of all trades. Master of none.
10,000 post flame5,000 post flame1,000 post flame100 post flame100 post flame100 post flame100 post flame
Tucson
Posts: 16,439
APPD 2.05
Post Rank: 5
1979 20ft Hawaiian Moonraker
Post Icon Posted: May 02 2005,3:27 pm Post # 7 see this member send this member a private message  quote this post in reply
Looks good, want me to come out and help :laugh Building motors is easy, building them right is a little more difficult. :D

God is Great, Beer is Good, and People are Crazy......

AUTO SAFETY HOUSE

Back to top
| Member # 29 | Joined: 12-18-2002 |
procraftkevMale Offline
Aries
 HDF Supporter
Boat Racer
500 post flame
Hesperia/Lake Havasu
Posts: 557
APPD 0.07
Post Rank: 58
Force Offshore Cat
Post Icon Posted: May 02 2005,3:36 pm Post # 8 see this member send this member a private message  quote this post in reply
Quote (HAKUNA MA"TATA" @ May 02 2005,2:22 pm)
another

Is that a stainless tool box I see in the back ground? :good

Kickn it @ Havasu!
Back to top
| Member # 161 | Joined: 7-21-2003 |
HAKUNA MA"TATA"Male Offline
Taurus
 HDF Supporter
Boater
100 post flame
SANTA PAULA
Posts: 170
APPD 0.02
Post Rank: 116
22 ULTRA STEALTH
Post Icon Posted: May 02 2005,3:42 pm Post # 9 see this member send this member a private message  quote this post in reply
costco carries those tool boxes about 600.00 top and bottom all roller bearing drawers. 3" locking casters :good  :good

DON'T POKE THE BEAR!
Back to top
| Member # 1201 | Joined: 3-17-2005 |
HAKUNA MA"TATA"Male Offline
Taurus
 HDF Supporter
Boater
100 post flame
SANTA PAULA
Posts: 170
APPD 0.02
Post Rank: 116
22 ULTRA STEALTH
Post Icon Posted: May 02 2005,3:52 pm Post # 10 see this member send this member a private message  quote this post in reply
Quote (AZKC @ May 02 2005,3:27 pm)
Looks good, want me to come out and help :laugh Building motors is easy, building them right is a little more difficult. :D

KC you can help now the hard part is finished. Think When it broke it would even be your falt. Really I feel for you.  :guns  :guns  I thought I'd take a better picture of the timing chain for you before I put the cover on tonight. That way I can see where the key is a TDC.

DON'T POKE THE BEAR!
Back to top
| Member # 1201 | Joined: 3-17-2005 |
AZKCMale Offline
Leo
 HDF Bronze Supporter
Jack of all trades. Master of none.
10,000 post flame5,000 post flame1,000 post flame100 post flame100 post flame100 post flame100 post flame
Tucson
Posts: 16,439
APPD 2.05
Post Rank: 5
1979 20ft Hawaiian Moonraker
Post Icon Posted: May 02 2005,3:56 pm Post # 11 see this member send this member a private message  quote this post in reply
Now that its been pointed out to me, I actually see it in my mind as that has I've always set them.  At some point during all these builds I shorted out that part of my brain :beat and put in on wrong :banghead

God is Great, Beer is Good, and People are Crazy......

AUTO SAFETY HOUSE

Back to top
| Member # 29 | Joined: 12-18-2002 |
HAKUNA MA"TATA"Male Offline
Taurus
 HDF Supporter
Boater
100 post flame
SANTA PAULA
Posts: 170
APPD 0.02
Post Rank: 116
22 ULTRA STEALTH
Post Icon Posted: May 02 2005,4:16 pm Post # 12 see this member send this member a private message  quote this post in reply
Quote (AZKC @ May 02 2005,3:56 pm)
Now that its been pointed out to me, I actually see it in my mind as that has I've always set them.  At some point during all these builds I shorted out that part of my brain :beat and put in on wrong :banghead

The only other thing I've seen to check clearance bolt the head on with a lump of modeling clay in the chamber and rotate the engine . remove the head slice the clay and measure the thickness of what is left on the piston. A lot of work but a sure thing.

DON'T POKE THE BEAR!
Back to top
| Member # 1201 | Joined: 3-17-2005 |
AZKCMale Offline
Leo
 HDF Bronze Supporter
Jack of all trades. Master of none.
10,000 post flame5,000 post flame1,000 post flame100 post flame100 post flame100 post flame100 post flame
Tucson
Posts: 16,439
APPD 2.05
Post Rank: 5
1979 20ft Hawaiian Moonraker
Post Icon Posted: May 02 2005,4:50 pm Post # 13 see this member send this member a private message  quote this post in reply
Claying the valves is one way to measure or get soft valve springs and a dial indicator.
I think after I take about 10 degrees of advanced cam timing out of my motor I'll be in a little better shape. I'm just pissed because of the lake and river trips I've missed because of my own stupidity. Probably saved enough in gas money that it pays for all the parts I've bought :rotflmao

God is Great, Beer is Good, and People are Crazy......

AUTO SAFETY HOUSE

Back to top
| Member # 29 | Joined: 12-18-2002 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,721
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: May 03 2005,5:38 am Post # 14 see this member send this member a private message  quote this post in reply
Quote (HAKUNA MA"TATA" @ May 02 2005,3:24 pm)
side. It is now Purple in Gofasts honor! I post more as I go.

I am deeply honored!. :good  :laugh Looks good, you have some nice parts there, how big is that motor??.. :)  :good
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
HAKUNA MA"TATA"Male Offline
Taurus
 HDF Supporter
Boater
100 post flame
SANTA PAULA
Posts: 170
APPD 0.02
Post Rank: 116
22 ULTRA STEALTH
Post Icon Posted: May 03 2005,7:02 am Post # 15 see this member send this member a private message  quote this post in reply
Quote (GoFastRacer @ May 03 2005,5:38 am)
Quote (HAKUNA MA"TATA" @ May 02 2005,3:24 pm)
side. It is now Purple in Gofasts honor! I post more as I go.

I am deeply honored!. :good  :laugh Looks good, you have some nice parts there, how big is that motor??.. :)  :good

I was trying to figure it out with my father. It was a 454 we bored .030 over and stroked it .25 so it should be a 496? I'm excited  :jumpie  :jumpie  :jumpie

DON'T POKE THE BEAR!
Back to top
| Member # 1201 | Joined: 3-17-2005 |
HAKUNA MA"TATA"Male Offline
Taurus
 HDF Supporter
Boater
100 post flame
SANTA PAULA
Posts: 170
APPD 0.02
Post Rank: 116
22 ULTRA STEALTH
Post Icon Posted: May 03 2005,7:13 am Post # 16 see this member send this member a private message  quote this post in reply
Quote (AZKC @ May 02 2005,4:50 pm)
Claying the valves is one way to measure or get soft valve springs and a dial indicator.
I think after I take about 10 degrees of advanced cam timing out of my motor I'll be in a little better shape. I'm just pissed because of the lake and river trips I've missed because of my own stupidity. Probably saved enough in gas money that it pays for all the parts I've bought :rotflmao

We'll give you some time to vent.  :fight  :fight But then it's time to get to work cause I'd like to run along side that blue beast. Nothings better than the sound of cutting glassy water early morning.

DON'T POKE THE BEAR!
Back to top
| Member # 1201 | Joined: 3-17-2005 |
HAKUNA MA"TATA"Male Offline
Taurus
 HDF Supporter
Boater
100 post flame
SANTA PAULA
Posts: 170
APPD 0.02
Post Rank: 116
22 ULTRA STEALTH
Post Icon Posted: May 03 2005,8:00 am Post # 17 see this member send this member a private message  quote this post in reply
BTW I found the cam specs.
Lift   632/632
dur   312/312
@50  244/244
lobe ctr 110
lash 016/018
All roller solid lifters. Should flow.  :good  :good

DON'T POKE THE BEAR!
Back to top
| Member # 1201 | Joined: 3-17-2005 |
MrCordMale Offline
Libra
 HDF Silver Supporter
In need of a River Trip!
1,000 post flame1,000 post flame100 post flame
Irvine Ca
Posts: 2,179
APPD 0.30
Post Rank: 30
28' Magic H-Deck
Post Icon Posted: May 03 2005,10:04 am Post # 18 see this member send this member a private message  quote this post in reply
How much power are you estimating it will make???

Never Trust Anyone That Talks Too Fast.... They are hoping you miss something!
Back to top
| Member # 1117 | Joined: 3-01-2005 |
HAKUNA MA"TATA"Male Offline
Taurus
 HDF Supporter
Boater
100 post flame
SANTA PAULA
Posts: 170
APPD 0.02
Post Rank: 116
22 ULTRA STEALTH
Post Icon Posted: May 03 2005,10:21 am Post # 19 see this member send this member a private message  quote this post in reply
Quote (MrCord @ May 03 2005,10:04 am)
How much power are you estimating it will make???

I was trying for about 500-550. I would like to dyno but at this point it's not availible. I am running 11:1 comp. If i can get it on a dyno next week I will.  :good

DON'T POKE THE BEAR!
Back to top
| Member # 1201 | Joined: 3-17-2005 |
MrCordMale Offline
Libra
 HDF Silver Supporter
In need of a River Trip!
1,000 post flame1,000 post flame100 post flame
Irvine Ca
Posts: 2,179
APPD 0.30
Post Rank: 30
28' Magic H-Deck
Post Icon Posted: May 03 2005,10:30 am Post # 20 see this member send this member a private message  quote this post in reply
Nice :good

Good luck for a trouble free install!!!

Knock on wood!!!  :stupid
:beer

Never Trust Anyone That Talks Too Fast.... They are hoping you miss something!
Back to top
| Member # 1117 | Joined: 3-01-2005 |
Havasu DougMale Offline
Pisces
 HDF Gold Supporter
Delta Tau Chi - ΔTX
10,000 post flame1,000 post flame1,000 post flame100 post flame
North Padre Island, Texas
Posts: 12,188
APPD 1.52
Post Rank: 7
'78 Challenger jet
Post Icon Posted: May 03 2005,10:36 am Post # 21 see this member send this member a private message  quote this post in reply


Now what this truck needs is an HDF sticker on the back window. :D





Back to top
website  | Member # 1 | Joined: 12-02-2002 |
HAKUNA MA"TATA"Male Offline
Taurus
 HDF Supporter
Boater
100 post flame
SANTA PAULA
Posts: 170
APPD 0.02
Post Rank: 116
22 ULTRA STEALTH
Post Icon Posted: May 03 2005,10:48 am Post # 22 see this member send this member a private message  quote this post in reply
Quote (Havasu Doug @ May 03 2005,10:36 am)
Now what this truck needs is an HDF sticker on the back window. :D

Ya know a guy that has some of the fancy chrome ones? I would galdly buy a couple.  :cool

Edited by HAKUNA MA"TATA" on May 03 2005,10:48 am

DON'T POKE THE BEAR!
Back to top
| Member # 1201 | Joined: 3-17-2005 |
AZKCMale Offline
Leo
 HDF Bronze Supporter
Jack of all trades. Master of none.
10,000 post flame5,000 post flame1,000 post flame100 post flame100 post flame100 post flame100 post flame
Tucson
Posts: 16,439
APPD 2.05
Post Rank: 5
1979 20ft Hawaiian Moonraker
Post Icon Posted: May 03 2005,10:49 am Post # 23 see this member send this member a private message  quote this post in reply
Quote (HAKUNA MA"TATA" @ May 03 2005,8:00 am)
BTW I found the cam specs.
Lift   632/632
dur   312/312
@50  244/244
lobe ctr 110
lash 016/018
All roller solid lifters. Should flow.  :good  :good

With that cam you'll be making plenty of HP :eek  :good I forget what boat your running that in :stupid

Edit: ok a 22 ft stealth............ jet or prop?

Edited by AZKC on May 03 2005,10:50 am

God is Great, Beer is Good, and People are Crazy......

AUTO SAFETY HOUSE

Back to top
| Member # 29 | Joined: 12-18-2002 |
HAKUNA MA"TATA"Male Offline
Taurus
 HDF Supporter
Boater
100 post flame
SANTA PAULA
Posts: 170
APPD 0.02
Post Rank: 116
22 ULTRA STEALTH
Post Icon Posted: May 03 2005,10:55 am Post # 24 see this member send this member a private message  quote this post in reply
Quote (AZKC @ May 03 2005,10:49 am)
Edit: ok a 22 ft stealth............ jet or prop?

Your fast with the edit! Bravo One Out drive not sure for how long I have my eye on an XR drive. I figure the drive will be the weak link. I'm told it should handle it?

DON'T POKE THE BEAR!
Back to top
| Member # 1201 | Joined: 3-17-2005 |
big ernMale Offline
Libra
 HDF Supporter
Boater
100 post flame
mesa, az
Posts: 165
APPD 0.02
Post Rank: 119
82 19ft eliminator
Post Icon Posted: May 03 2005,12:38 pm Post # 25 see this member send this member a private message  quote this post in reply
I was trying to figure it out with my father. It was a 454 we bored .030 over and stroked it .25 so it should be a 496? I'm excited      Looks like it will be at 489 cubes, .060" over would be 496 w/.250 stroke. nice motor, what Kind of heads?
Back to top
| Member # 759 | Joined: 8-02-2004 |
61 replies since May 02 2005,2:21 pm < Next Oldest | Next Newest >
Pages: [1] 2 3

[ Track this topic :: Email this topic :: Print this topic ]
add a reply to this topic create a new topic create a new poll

Home » HD Forums » Forums » Boat Tech » Long Block Finished

navbarlogo
The Colorado River WebRing
‹ Prev | Hub | Like | Join | Surprise | Next ›

Please help keep HDF free. If you enjoy this site, feel free to make a donation to keep it running. THANKS!
