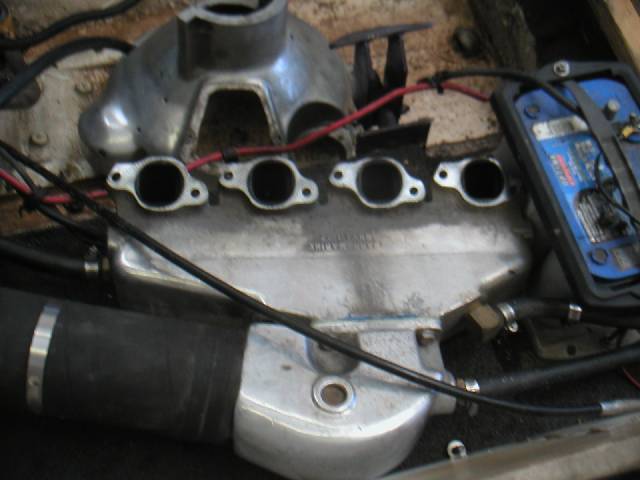

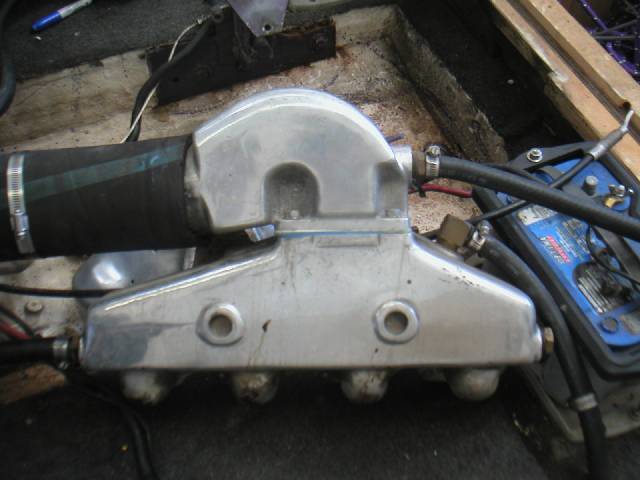

I need to choose my cam for my new motor but If these exhaust manifolds have water injected near the heads I need to watch the duration of the cam.  But if not I can go nuts...

Can anyone tell me for sure???


Thank you :D

Attached Image
Attached Image

Never Trust Anyone That Talks Too Fast.... They are hoping you miss something!
Back to top
| Member # 1117 | Joined: 3-01-2005 |
MrCordMale Offline
Libra
 HDF Silver Supporter
In need of a River Trip!
1,000 post flame1,000 post flame100 post flame
Irvine Ca
Posts: 2,179
APPD 0.30
Post Rank: 30
28' Magic H-Deck
Post Icon Posted: June 17 2005,7:21 pm Post # 2 see this member send this member a private message  quote this post in reply
:D

Attached Image
Attached Image

Never Trust Anyone That Talks Too Fast.... They are hoping you miss something!
Back to top
| Member # 1117 | Joined: 3-01-2005 |
Sleek-JetMale Offline
Aquarius
 HDF Supporter
The Cooler
5,000 post flame1,000 post flame100 post flame100 post flame100 post flame
Batavia, IL
Posts: 6,351
APPD 0.80
Post Rank: 11
Big 'Ole Inner-tube
Post Icon Posted: June 17 2005,7:28 pm Post # 3 see this member send this member a private message  quote this post in reply
Fock it, buy a set of Lightnings... They're water jacketed... :D

Honestly, I think those are jacketed manifolds.  Those look factory, yes???

A dog doesn't care if you're rich or poor, educated or illiterate, clever or dull. Give him your heart and he will give you his.
Back to top
| Member # 81 | Joined: 2-07-2003 |
MrCordMale Offline
Libra
 HDF Silver Supporter
In need of a River Trip!
1,000 post flame1,000 post flame100 post flame
Irvine Ca
Posts: 2,179
APPD 0.30
Post Rank: 30
28' Magic H-Deck
Post Icon Posted: June 17 2005,7:32 pm Post # 4 see this member send this member a private message  quote this post in reply
I dunno... They came with the boat...  I would like lightnings but I am a little broke after rebuilding a pump and building an engine... Gotta save some money for gas...

I was curious cuz there are three inlets.  So unless there are two that funnel into one I think they might be injected...  Maybe if they are I can convert them??

Im lost so I need help?? But what else in new :stupid

Edited by MrCord on June 17 2005,7:33 pm

Never Trust Anyone That Talks Too Fast.... They are hoping you miss something!
Back to top
| Member # 1117 | Joined: 3-01-2005 |
Sleek-JetMale Offline
Aquarius
 HDF Supporter
The Cooler
5,000 post flame1,000 post flame100 post flame100 post flame100 post flame
Batavia, IL
Posts: 6,351
APPD 0.80
Post Rank: 11
Big 'Ole Inner-tube
Post Icon Posted: June 17 2005,7:41 pm Post # 5 see this member send this member a private message  quote this post in reply
Are they under an engine cover??? The Coast Guard requires that any manifold in an enclosed space must be jacketed.

Is there a name cast into them anywhere???

A dog doesn't care if you're rich or poor, educated or illiterate, clever or dull. Give him your heart and he will give you his.
Back to top
| Member # 81 | Joined: 2-07-2003 |
Sleek-JetMale Offline
Aquarius
 HDF Supporter
The Cooler
5,000 post flame1,000 post flame100 post flame100 post flame100 post flame
Batavia, IL
Posts: 6,351
APPD 0.80
Post Rank: 11
Big 'Ole Inner-tube
Post Icon Posted: June 17 2005,7:52 pm Post # 6 see this member send this member a private message  quote this post in reply
Also, most manifolds I've seen run the water through them first to warm it before it's pumped into the engine.  So, the cold water comes in one side and out the other into the engine.  Then, finally some water is injected back into the exhaust as a sound muffling device.

That's why there are three fittings.

A dog doesn't care if you're rich or poor, educated or illiterate, clever or dull. Give him your heart and he will give you his.
Back to top
| Member # 81 | Joined: 2-07-2003 |
MrCordMale Offline
Libra
 HDF Silver Supporter
In need of a River Trip!
1,000 post flame1,000 post flame100 post flame
Irvine Ca
Posts: 2,179
APPD 0.30
Post Rank: 30
28' Magic H-Deck
Post Icon Posted: June 17 2005,8:01 pm Post # 7 see this member send this member a private message  quote this post in reply
They are under a cover... And that makes sence. about the injection... Now the question is can the water be sucked back into the head or is it injected far enough from the heads to not matter...


Also I think there is CARR marine cast on them...

Never Trust Anyone That Talks Too Fast.... They are hoping you miss something!
Back to top
| Member # 1117 | Joined: 3-01-2005 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,721
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: June 20 2005,7:01 pm Post # 8 see this member send this member a private message  quote this post in reply
They are jacketed castings no water in the ports but if you're thinking big heads and cam, get lightnings or CMI's!.. It's only $$$$$$$$$$$!.. :D  :good
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
MrCordMale Offline
Libra
 HDF Silver Supporter
In need of a River Trip!
1,000 post flame1,000 post flame100 post flame
Irvine Ca
Posts: 2,179
APPD 0.30
Post Rank: 30
28' Magic H-Deck
Post Icon Posted: June 20 2005,7:20 pm Post # 9 see this member send this member a private message  quote this post in reply
But I think that the hose that goes in the top injects water into the exhaust...  Because there is no water dump over the side of the boat.  Im worried that it might get sucked into the heads.  Or do you think that it is far enough away to be safe???

Im running a long duration on the cam...

Edited by MrCord on June 20 2005,7:21 pm

Never Trust Anyone That Talks Too Fast.... They are hoping you miss something!
Back to top
| Member # 1117 | Joined: 3-01-2005 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,721
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: June 20 2005,8:13 pm Post # 10 see this member send this member a private message  quote this post in reply
Shouldn't be a problem, it's far enough away not like regular headers where the water is only about 5" from the head!.. :good
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
MrCordMale Offline
Libra
 HDF Silver Supporter
In need of a River Trip!
1,000 post flame1,000 post flame100 post flame
Irvine Ca
Posts: 2,179
APPD 0.30
Post Rank: 30
28' Magic H-Deck
Post Icon Posted: June 20 2005,9:35 pm Post # 11 see this member send this member a private message  quote this post in reply
Cool thanks! Getting close to being done... I cant wait!

Never Trust Anyone That Talks Too Fast.... They are hoping you miss something!
Back to top
| Member # 1117 | Joined: 3-01-2005 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,721
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: June 21 2005,5:38 am Post # 12 see this member send this member a private message  quote this post in reply
Quote (MrCord @ June 20 2005,9:35 pm)
Cool thanks! Getting close to being done... I cant wait!

:)  :good  :beer
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
bigblockbillMale Offline
Boatless

Albuquerque, NM
Posts: 24
APPD 0.00
Post Rank: 237
24' Elim Fun Deck
Post Icon Posted: June 27 2005,6:59 am Post # 13 see this member send this member a private message  quote this post in reply
I have used a set of those and they work pretty good.  You can run as much cam with as little lobe seperation as you want.  Water should not be able to get sucked in to the heads.

Liven in the land of no water
Back to top
| Member # 1215 | Joined: 3-21-2005 |
MrCordMale Offline
Libra
 HDF Silver Supporter
In need of a River Trip!
1,000 post flame1,000 post flame100 post flame
Irvine Ca
Posts: 2,179
APPD 0.30
Post Rank: 30
28' Magic H-Deck
Post Icon Posted: June 27 2005,8:08 am Post # 14 see this member send this member a private message  quote this post in reply
Thanks all... you were right...  I got a little creative and started pouring water down the hoses and seeing where it poured out...

The bottom two hoses were a straight shot through to the engine...  that top one does inject water into the exhaust but there is a special part in the casting that shoots the water down the rubber hose as far away from the exhaust...

Now, I need to make sure that these things will clear my valve covers

Never Trust Anyone That Talks Too Fast.... They are hoping you miss something!
Back to top
| Member # 1117 | Joined: 3-01-2005 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,721
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: June 28 2005,6:19 am Post # 15 see this member send this member a private message  quote this post in reply
Any progress??.. :)
Back to top
website  | Member # 101 | Joined: 3-03-2003 |
MrCordMale Offline
Libra
 HDF Silver Supporter
In need of a River Trip!
1,000 post flame1,000 post flame100 post flame
Irvine Ca
Posts: 2,179
APPD 0.30
Post Rank: 30
28' Magic H-Deck
Post Icon Posted: June 28 2005,6:48 am Post # 16 see this member send this member a private message  quote this post in reply
The engine is going in after work tomorrow :)  And we are supposed to leave on thursday.  But I have been around long enough to know that nothin ever goes in perfect...  So wish me luck...

I will try to borrow my roommates camera to take some pictures while it is going in :good

Thanks for all the help

Never Trust Anyone That Talks Too Fast.... They are hoping you miss something!
Back to top
| Member # 1117 | Joined: 3-01-2005 |
GoFastRacerMale Offline
 HDF Supporter
V-Driver For Life!
50,000 post flame10,000 post flame1,000 post flame1,000 post flame500 post flame100 post flame100 post flame
Big River, Ca
Posts: 62,721
APPD 7.91
Post Rank: 1
Spectra20
Post Icon Posted: June 28 2005,7:44 am Post # 17 see this member send this member a private message  quote this post in reply
Cool, looking forward to some pics!.. :good
